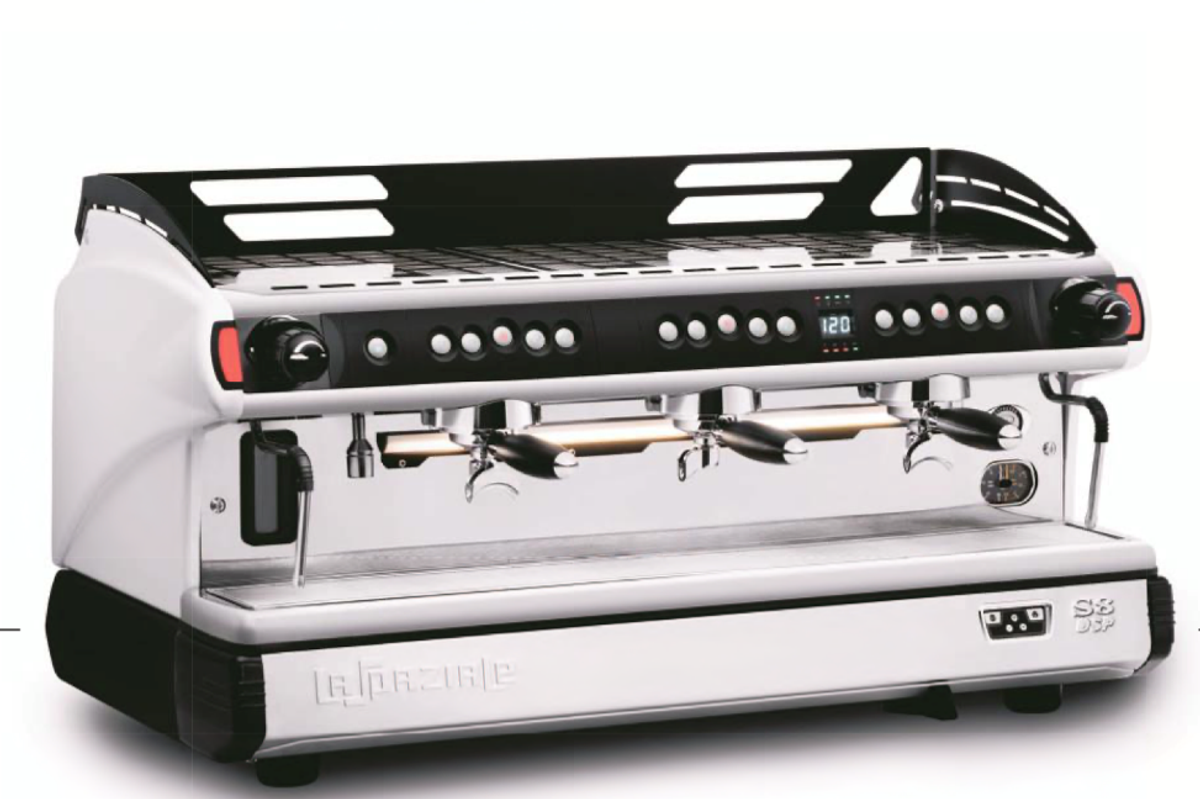

La Spaziale S9 3 Group Commercial Espresso Machine

3-group commercial machine - 15-litre boiler, 4 dose controls, and takeaway cup clearance.

Price on enquiry

Indicative. The quote follows a site survey and covers install, service and parts.

Enquire about this machine Share

Available to: LeaseBuyRent
Ideal for: Boutique Cafes & Coffee ShopsRestaurants & BarsExecutive Offices & BoardroomsHospitality & Event Spaces
Throughput: High Use

Details

Everything about the La Spaziale S9 3 Group Commercial Espresso Machine

DescriptionDrinksSpecificationsFeatures

The La Spaziale S9 3 Group Commercial Espresso Machine is a heavy-duty commercial unit designed for high-volume coffee operations demanding rapid throughput and thermal stability. Powered by a 20 Amp electrical supply with 4500W output and a substantial 15-litre boiler capacity, it provides exceptional recovery during peak rushes. Each group features 4 programmable dose controls alongside a manual free-flow override function for complete barista versatility.

Built around La Spaziale's patented steam heat exchanger, the S9 reduces scale buildup while maintaining precise extraction temperatures. Signature narrow 53mm filter baskets create a deeper coffee bed for consistent brewing quality across all three groups. Complete with two right-angled steam wands for effortless milk texturing, the S9 3 Group is also available in a takeaway (T/A) configuration with raised cup height clearance.

Every drink below is set up at install and can be renamed, re-priced or removed. Sizes, strengths and milk quantities are yours to set, and we can push a change to every site you run at once.

Full Range

Dimensions (Machine): W: 1000 mm x H: 520 mm x D: 530 mm
Dimensions (Takeaway / T/A Machine): W: 1000 mm x H: 600 mm x D: 530 mm
Weight (Machine): 80 kg
System Type: Traditional Espresso (3 Group)
Boiler Capacity: 15 Litres
Power Requirements: 20 Amp supply with 3 powerful heating elements
Shot Controls: 4 programmable dose controls per group with manual free-flow override
Thermal System: Patented steam heat exchanger
Portafilter Basket Size: Narrow 53mm baskets for deep coffee bed extraction
Steam System: Two right-angled steam wands
Options: Takeaway / tall cup option available
Included Extras: Free Barista Kit & Barista Training Available

Dimensions exclude the clearance needed for servicing. Our surveyor confirms the final footprint, supply and drainage before anything is ordered.

4 programmable dose controls per group plus manual free-flow automatic service override
20 Amp power supply (4500W) with 3 heating elements for rapid temperature recovery
Large 15-litre boiler capacity engineered to effortlessly support non-stop hot water and steam demand
Patented steam heat exchanger delivers excellent temperature stability while protecting against scale build-up
Two ergonomic right-angled steam wands engineered for fast and simple milk texturing
Signature 53mm narrow filter basket design creates a deeper coffee bed for consistent, full-bodied extraction
Includes a free barista starter kit and options for hands-on barista training

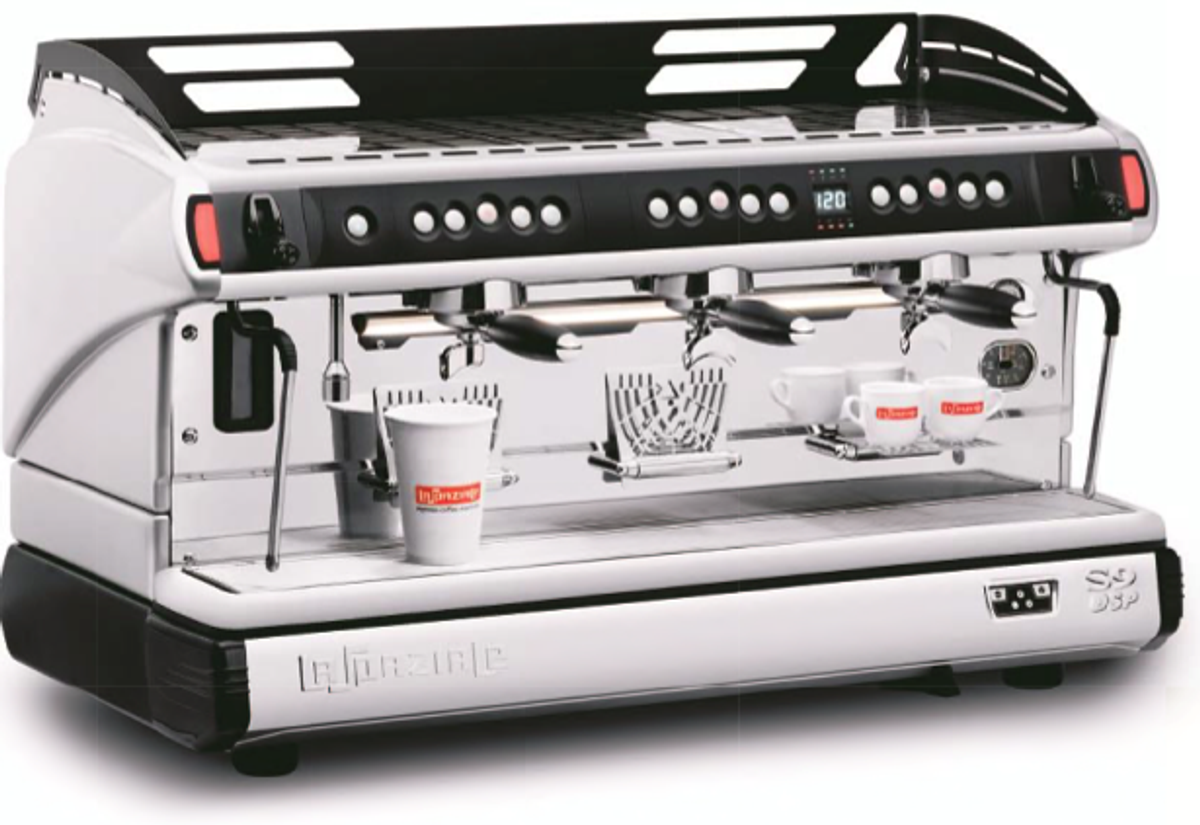

Available in a takeaway configuration to easily accommodate taller takeaway cups

Paperwork

Brochures and specifications

Everything here is the current version. If you need something that is not on this list — a DXF, a risk assessment, a data sheet for a component — ask and we will send it.

La Spaziale S9 3 group traditional commercial espresso machine (opens in a new tab)

PDF · 151 KB · opens in a new tab
