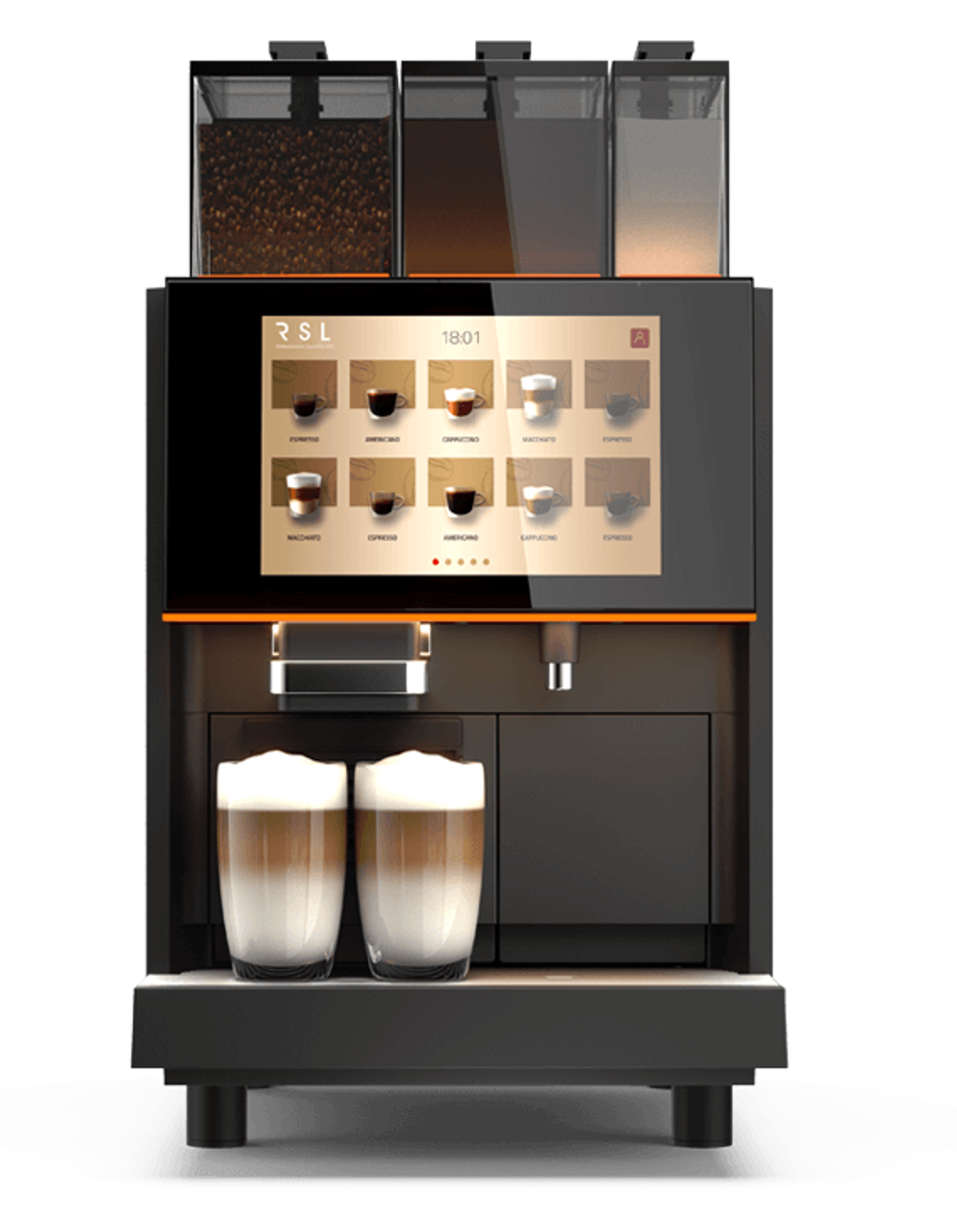

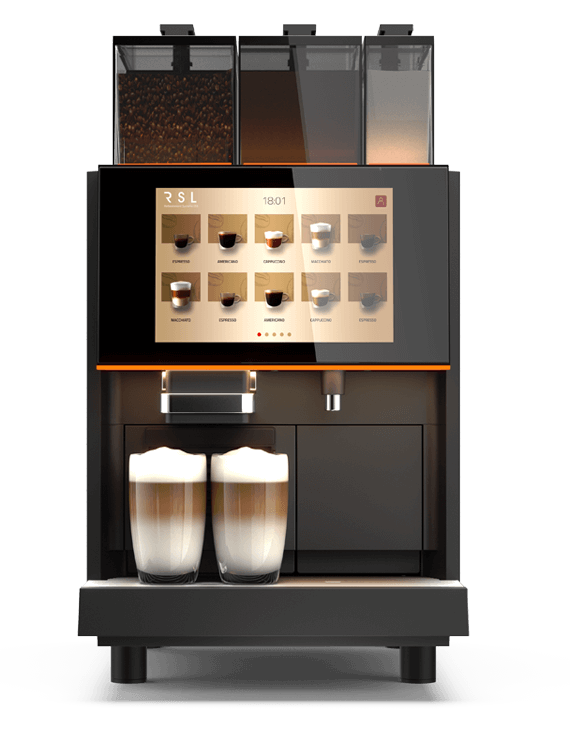

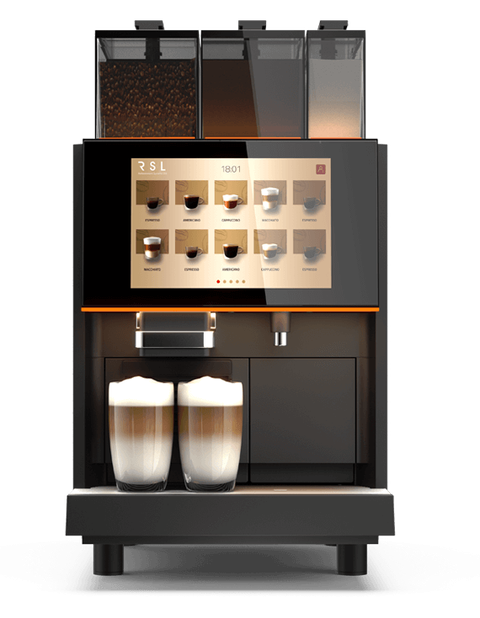

SmartQube Model R

Every drink below is set up at install and can be renamed, re-priced or removed. Sizes, strengths and milk quantities are yours to set, and we can push a change to every site you run at once.

• Double Ristretto
• Cappuccino
• Latte Macchiato
• Double Cappuccino
• Milk Chocolate
• Ristretto
• Lungo
• Double Espresso
• Latte Macchiato
• Double Flat White
• Mocha
• Espresso
• Coffee Crema
• Macchiato
• Café Latte
• Double Macchiato
• Double Café Latte
• Americano
• Hot Water

Drinks per hr

Up to 150

Screen size

10.1″

System

Android

Bean hopper capacity

1*1200g

Fresh milk

No

Powdered milk

Yes

Topping hopper capacity

1500g + 1200g

Logo and advertisement Video

Yes

Voltage/ Frequency

220-240V – 50/60HZ

Heating power

2700W

Dimension

D:560mm W:380mm H:690mm

Weight

30kg

Espresso brewer capacity

5~16g

Boiler capacity

0.7L

Water tank volume

4L

Drip tray capacity

2L

Waste bin full (counter)

45 portions

Coffee spout height

Level 1=100mm level 2=160mm

Water supply

Fixed water + Barrelled water + Tank water

Base colour

Black, silver & golden

Option to add customisable graphics to suit your company branding

Yes

Dimensions exclude the clearance needed for servicing. Our surveyor confirms the final footprint, supply and drainage before anything is ordered.

• Three application scenarios – Standard, Professional and Self-service are preinstalled. Whether in a hotel, café or convenience store, it’s quite easy to choose your favourite user interface and enjoy the customised operation experience.
• IoT Cloud offers you the complete package: track and analyze live data, monitor machine status and beverage consumption, manage maintenance, adjust the recipes and personalize the videos remotely
• The 10.1” colour touch display with the Android system is easy to operate. It offers personalization and advertisement options which brings an intelligent mode of human-computer interaction. The variable lighting around the display suits any ambience while flashing lights remind you to clean or maintain your appliance.
• A separate hot water outlet makes it easy and efficient to prepare various tea beverages.
• One-touch cleaning cycle, guided on screen
• Contactless payment module available
