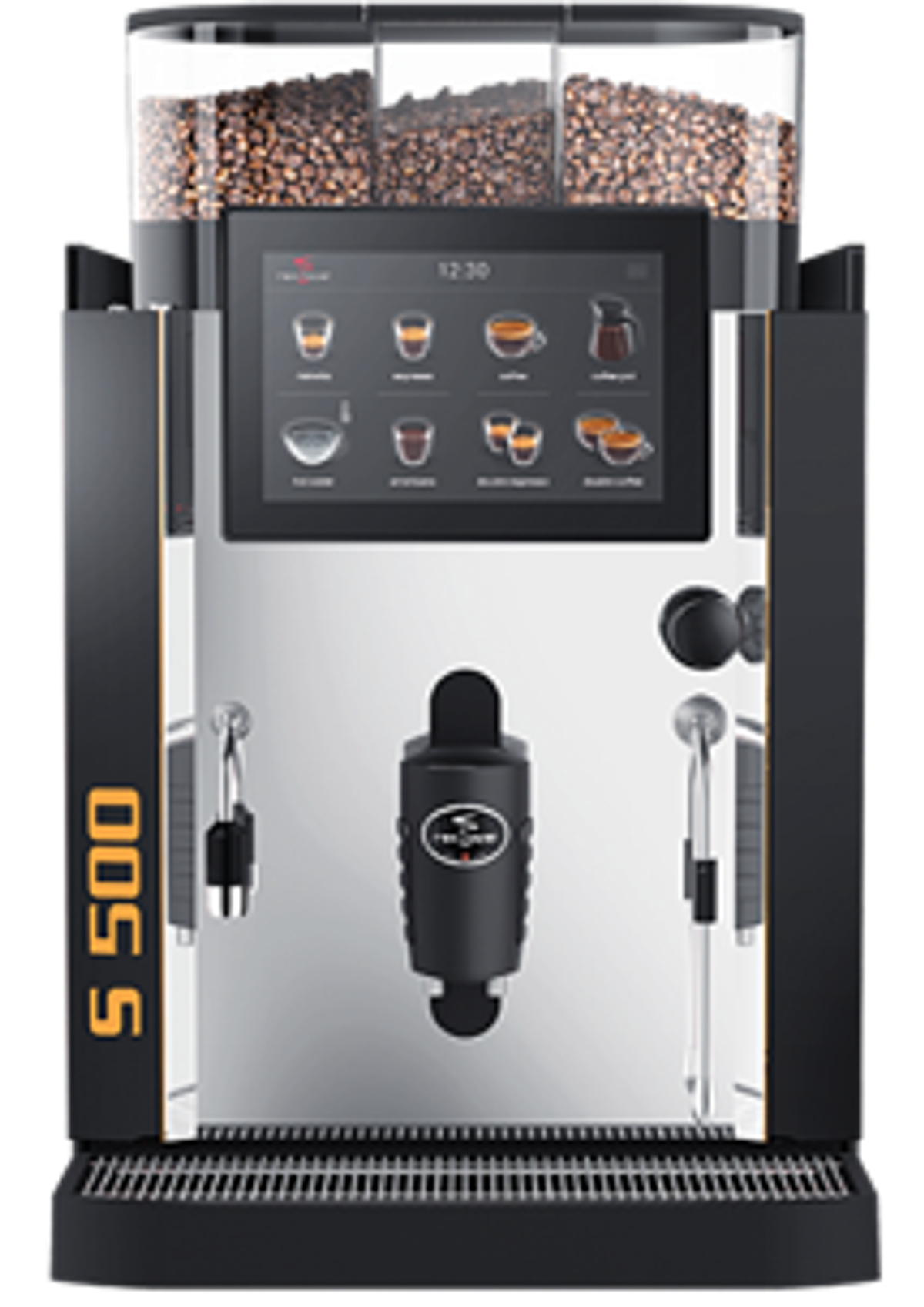

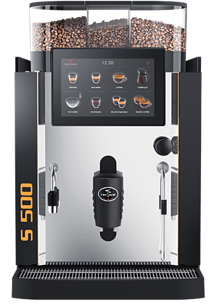

RSL 500 Bean to Cup Commercial Coffee Machine

Commercial bean-to-cup coffee machine dual grinders, three canisters and dual drink.

Price on enquiry

Indicative. The quote follows a site survey and covers install, service and parts.

Available to
LeaseBuyRent
Ideal for
Offices & WorkplacesHealthcare & NHSEducation & CampusesPublic SectorHospitality & Leisure
Throughput
High Use (Up to 250 cups per hour)

Details

Everything about the RSL 500 Bean to Cup Commercial Coffee Machine

Choose what to read about the RSL 500 Bean to Cup Commercial Coffee Machine

The RSL 500 Bean to Cup Commercial Coffee Machine is an ultra-high-capacity coffee solution designed for busy commercial environments, office canteens, and high-footfall sites. Featuring two grinders as standard alongside three dedicated canisters to store coffee beans, powdered milk, and chocolate, it delivers maximum menu versatility. Its rapid dual-dispense capability makes it a true queue buster, allowing two drinks to be prepared simultaneously without reducing output speed or drink quality.

Engineered with a heavy-duty 23g steel brewing unit, the RSL 500 extracts authentic barista-style double shots with ease. A included 10-litre milk chiller supplies fresh milk for speciality coffees, while an intuitive 10.1" touchscreen display guides users with step-by-step pictorial cleaning instructions. Additional extras include a cup warmer, barista steam arm, and compact foam module to generate delicious hot or cold foamed milk drinks.

Every drink below is set up at install and can be renamed, re-priced or removed. Sizes, strengths and milk quantities are yours to set, and we can push a change to every site you run at once.

  • Espresso
  • Double espresso
  • Americano
  • Latte
  • Cappuccino
  • Flat white
  • Latte Macchiato
  • Mocha
  • Hot chocolate
  • Hot water
  • Double Ristretto
  • Double Cappuccino
  • Ristretto
  • Lungo
  • Double Flat White
  • Coffee Crema
  • Double Macchiato
  • Double Café Latte
  • Tea
Dimensions (Machine)
W: 453 mm x H: 758 mm x D: 620 mm
Dimensions (4L Fridge)
W: 228 mm x H: 339 mm
Dimensions (10L Fridge)
W: 312 mm x H: 602 mm
Weight (Machine)
67 kg – 76 kg
Weight (4L Fridge)
14 kg
Weight (10L Fridge)
30 kg / 33 kg
Water Tank Capacity
Holds up to 58 litres of water
Canister Configuration
3 Canisters (Coffee Beans, Powdered Milk, Chocolate)
Grinder System
2 Grinders as standard
Milk System
Fresh Milk (10L Milk Chiller included) or Powdered Milk
Brewing Unit
23g steel brewing unit for true barista-style double shots
Interface
10.1" touchscreen display with pictorial step-by-step cleaning guide
Power Options
13amp, 16amp, 20amp (single phase) or 32amp (3 phase)
Programmable Options
24 Drink Options
Model Variations
M model (2 alternative milks), CF models (3 alternative milks), PowerSteam (unlimited milk options)

Dimensions exclude the clearance needed for servicing. Our surveyor confirms the final footprint, supply and drainage before anything is ordered.

  • Three dedicated canisters hold coffee beans, powdered milk, and chocolate for total menu flexibility
  • Dual grinder setup as standard ensures optimal grind consistency across coffee varieties
  • Prepares two drinks simultaneously for fast service during peak periods
  • Premium 23g brewing unit delivers authentic barista-grade double espresso shots
  • Included 10-litre milk chiller accommodates fresh milk coffee preparation
  • High-capacity internal fluid system holds up to 58 litres of water

Paperwork

Brochures and specifications

Everything here is the current version. If you need something that is not on this list — a DXF, a risk assessment, a data sheet for a component — ask and we will send it.
