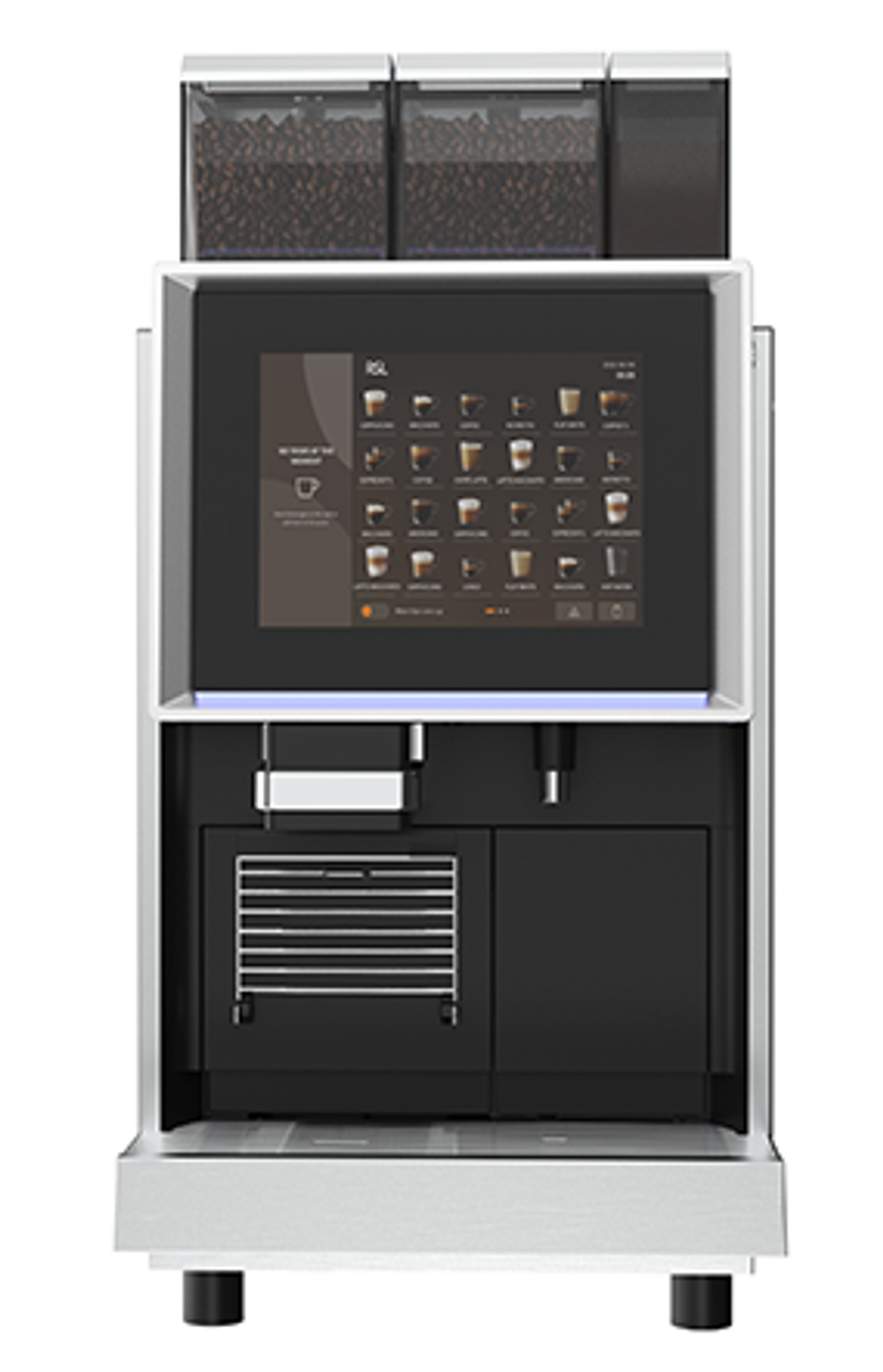

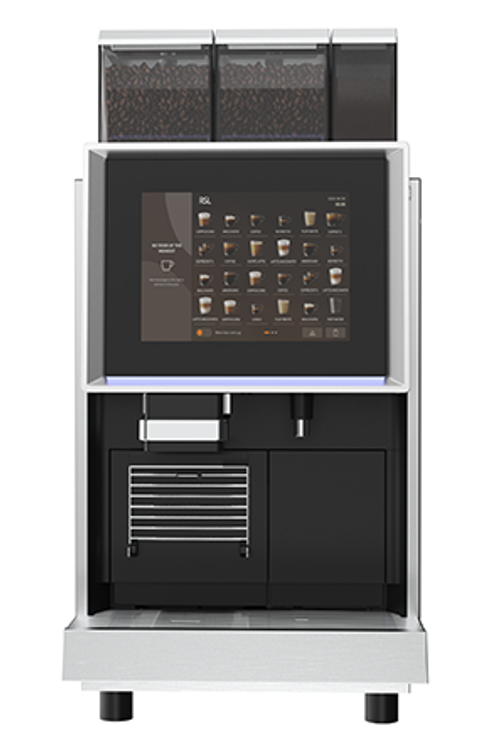

SmartQube PRO Model

Every drink below is set up at install and can be renamed, re-priced or removed. Sizes, strengths and milk quantities are yours to set, and we can push a change to every site you run at once.

• Espresso
• Double espresso
• Americano
• Latte
• Cappuccino
• Flat white
• Latte Macchiato
• Mocha
• Hot chocolate
• Hot water
• Double Ristretto
• Double Cappuccino
• Ristretto
• Lungo
• Double Flat White
• Coffee Crema
• Double Macchiato
• Double Café Latte
• Tea

Drinks per hour

Up to 150

Screen size

10.1″

System

Android

Bean hopper capacity

2*1200g

Fresh milk

Yes

Powdered milk

No

Topping hopper capacity

1200g

Logo and advertisement Video

Yes

Voltage/ Frequency

220-240V – 50/60HZ

Heating power

2500W

Dimension

D:560mm W:380mm H:680mm

Weight

33.1 kg

Espresso brewer capacity

9~22g

Boiler capacity

0.7 L hot water boiler + 0.6 L steam boiler.

Water tank volume

4L

Drip tray capacity

2L

Waste bin full (counter)

45 portions

Coffee spout height

Level 1=100mm level 2=160mm

Water supply

Fixed water + Barrelled water + Tank water

Base colour

Black and Silver are standard

Option to add customisable graphics to suit your company branding

Yes

Dimensions exclude the clearance needed for servicing. Our surveyor confirms the final footprint, supply and drainage before anything is ordered.

• One Bean and Dual Powders The arbitrary combination of dual bean and one powder hoppers and fresh milk can make more than 30 kinds of beverages fit with small, medium and large size.
• Metal Appearance Metal appearance elevates the coffee machine’s visual appeal.
• Three Application Modes Three different business modes – professional mode, self-service mode and standard mode match different operation scenarios.
• Consistent Beverage Quality For continuous extraction espresso, achieving a TDS (Total Dissolved Solids) of up to 9 mg/L, with cup volume deviation within ±5%, and coffee temperature deviation limited to ±3°C.
• 10.1″ Android Touch Display 10.1″ smart interactive display helps prepare the beverages efficiently with a single touch and adjust the parameters of the beverages flexibly.
• Robust Brewer with 22g Capacity 22g brewer with a larger capacity produces a greater volume of coffee and with longer life cycle. High-performance brewer with extended lifespan and increased capacity for generating larger coffee volumes.
• High-Performance Milk System Upgraded and detachable milk foamer; 60℃- 70℃ frothing temperature; Adjustable milk volume; Automatic rinsing/cleaning system.
• Regulated Water Control System Low / medium / high temperature; Ice Americano available with low temperature water; One click hot water supply for easy cups rinsing, machine cleaning and tea brewing
• Independent Hot Water Wand One click hot water supply for easy cups rinsing, machine cleaning and tea brewing thanks to the independent hot water wand.
• Double Metal Boilers Respective boilers designed for hot water and steam, reducing preparation time while ensuring a consistent outcome.
• Ultra-Precision Grinding System High quality and durability of Ditting’s metal burr produce uniform coffee grounds, ensuring the best flavour and quality in every cup. Accurate calibration and adjustment to accommodate different powder quantities and grind sizes.
• Coffee Residue-Free System Enjoy fresh coffee with the drainage pump technology, ensuring a residue-free coffee experience before and after each brew.
• Rinsing and Maintenance Brewing and frothing systems undergo automatic rinsing each time when the machine turned on or off. Both hoppers and milk frothier are detachable, making them more convenient to clean.
• Cup sensor — will not dispense into an empty drip tray
• Contactless payment module available
